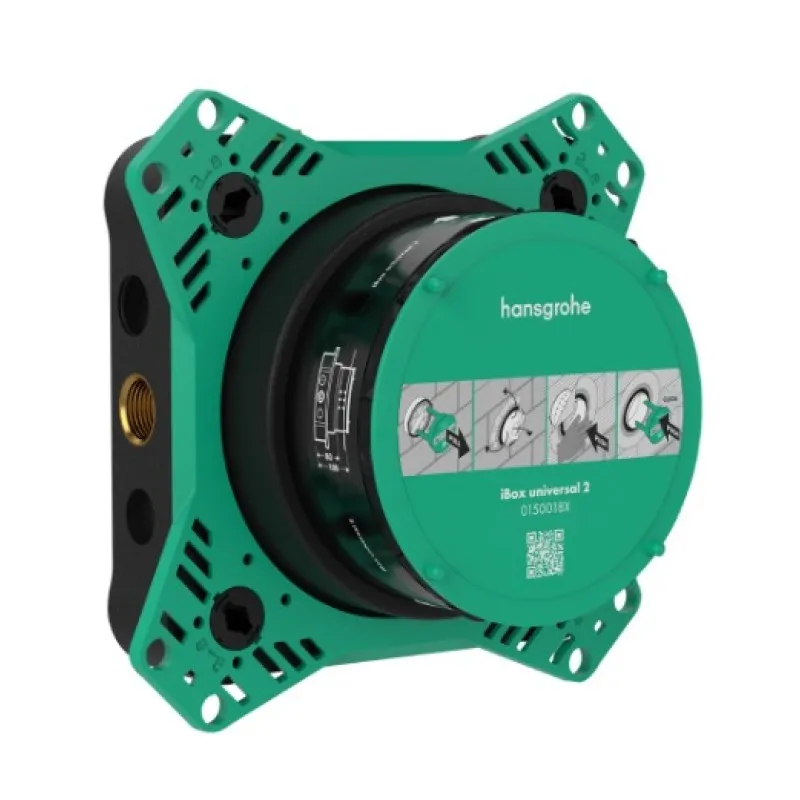

Zemapmetuma mezgls Hansgrohe iBox universal 2

Zemapmetuma mezgls Hansgrohe iBox universal 2

• suitable for all new shower, bath tub and thermostat finish sets for concealed installation (ShowerSelect Comfort, DuoTurn)

• in conjunction with adapter plate (# 13588000) compatible with other concealed shower, bath tub and thermostat finish sets

• material: dezincification brass, EPP foam, heat and sound insulating

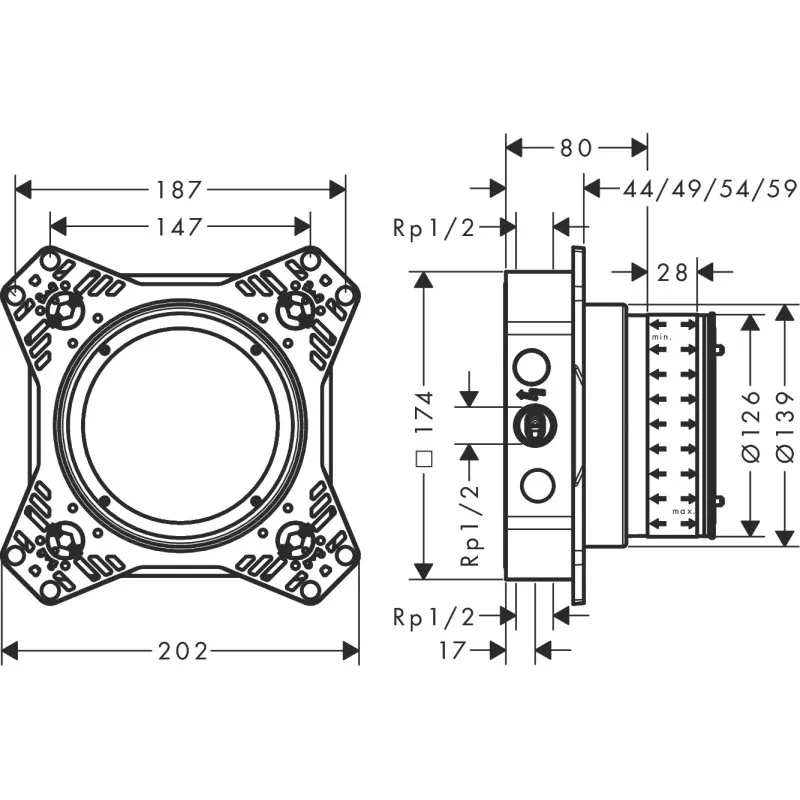

• connection thread: Rp ½

• connection dimension: DN15

• rotationally-symmetric installation

• sound-decoupled installation

• flexible mounting ring for different mounting situations

• mounting ring adjustable in 5 mm steps

• mounting ring suitable for front and rear installation

• no shortening necessary thanks to sliding sleeve

• support aid for the spirit level

• integrated spirit level for correct horizontal and vertical alignment

• sealing foil permanently fixed

• power supply: M16 flexible conduit

• minimum mounting depth: 80 mm

• maximum mounting depth: 108 mm
